CDH-800

80 WATTS

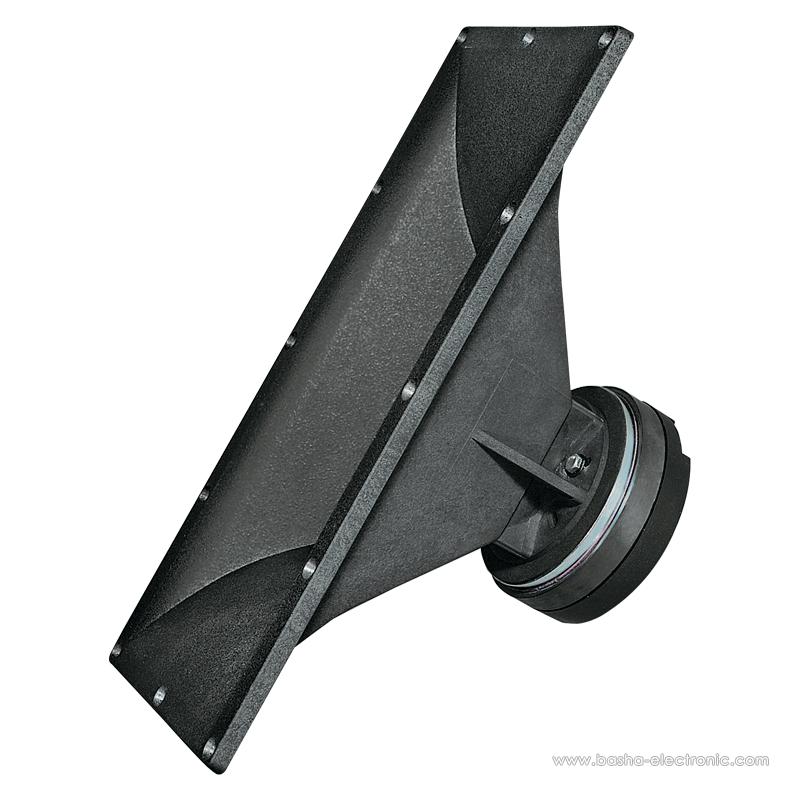

PA Compression Horn Driver

  • Professional compression driver-horn CDH-800 loudspeaker, suitable for high power speaker systems. Owing to its titanium diaphragm the HF response is superb. Ideal for use with 2 nos. Low Frequency speakers AHUJA L15-MB300 to make a 600 watts speaker system. It can also be used with a single L15-MB300. The solid glass filled ABS horn has a very even radiation and excellent sound. Thus it is ideal for all indoor as well as outdoor PA and professional DJ applications.
The Manufacture Company : AHUJA
Country of Origin : INDIA



  • Specifications

Power Capacity

80W RMS

Throat Diameter

25.4 mm (1”)

Nominal Impedance

8Ω

Sensitivity (1W/1m )

108dB

Usable Frequency Range

1.5kHz-18kHz

Recommended Crossover

2.5kHz 18db/oct

Voice Coil Diameter

44.4 mm

Diaphragm Material

Titanium

Voice Coil Material

Edge Wound Copper Clad Alumimium Ribbon

Voice Coil Former

Resin Bonded Kapton

Horn Material

ABS with Glass Filled Black Polycarbonate

Nominal Coverage Angle

H90° x V40° (-6dB)

Horn Cut off Frequency

600Hz

Mounting Cutout

W370 × H155 mm

Overall Dimensions

W424 × H194 × D205 mm

Weight

3.45kg
