CDH-1000
123,420 SP
140,580 SP

SPEAKERS

PA COMPRESSION HORN DRIVERS

CDH-1000

100 WATTS

PA Compression Horn Driver

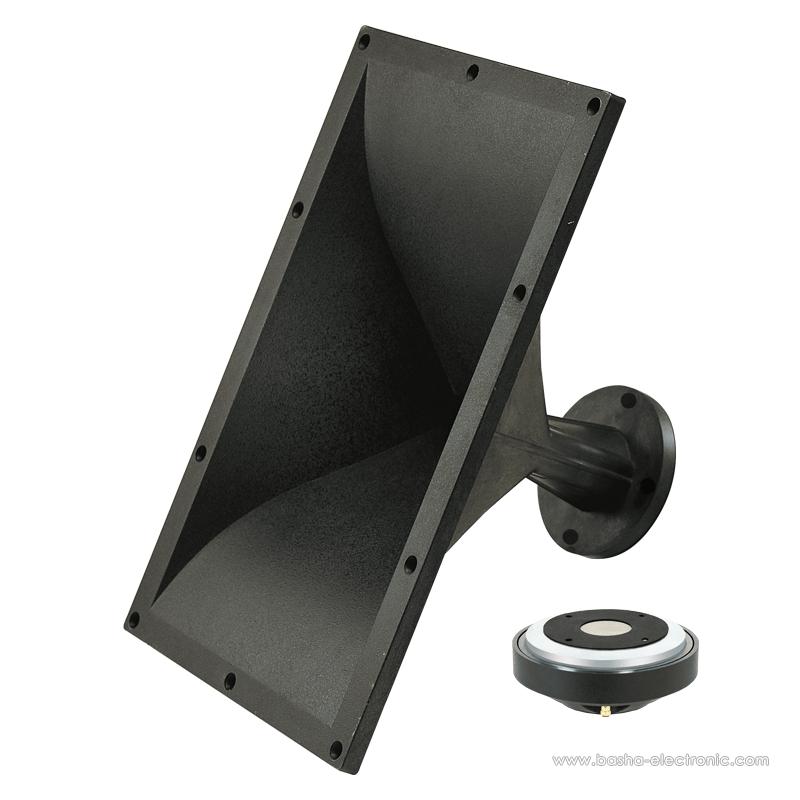

  • Professional heavy duty 2” throat compression driver-horn loudspeaker CDH-1000 (Horn H-7380 + Driver CD-750) is suitable for very high power speaker systems. It reproduces Mid and High frequencies with superb accuracy. Ideal for use with 2 nos. Low Frequency speakers AHUJA L15-LF500 to make a 1000 watts speaker system. It can also be used with a single L15-LF500. The horn is made of solid glass filled ABS. It has been designed specifically for all outdoor sound reinforcement applications.
The Manufacture Company : AHUJA
Country of Origin : INDIA



  • Specifications

Power Capacity

100W RMS

Throat Diameter

50 mm (2”)

Nominal Impedance

8Ω

Sensitivity (1W/1m )

108dB

Usable Frequency Range

500Hz-18kHz

Recommended Crossover

1.2kHz 18dB/oct

Voice Coil Diameter

72.2 mm

Diaphragm Material

Titanium

Voice Coil Material

Edge Wound Copper Clad Aluminium Ribbon

Voice Coil Former

Resin Bonded Kapton

Horn Material

ABS with Glass Filled Black Polycarbonate

Nominal Coverage Angle

H90° x V40° (-6dB)

Horn Cut off Frequency

400Hz

Mounting Cutout

W375 × H240 mm

Overall Dimensions

W440 × H280 × D241 mm (Horn only)

Weight

6.2kg
