DXA-1802

POWER AMPLIFIERS

DUAL CHANNEL POWER AMPLIFIERS

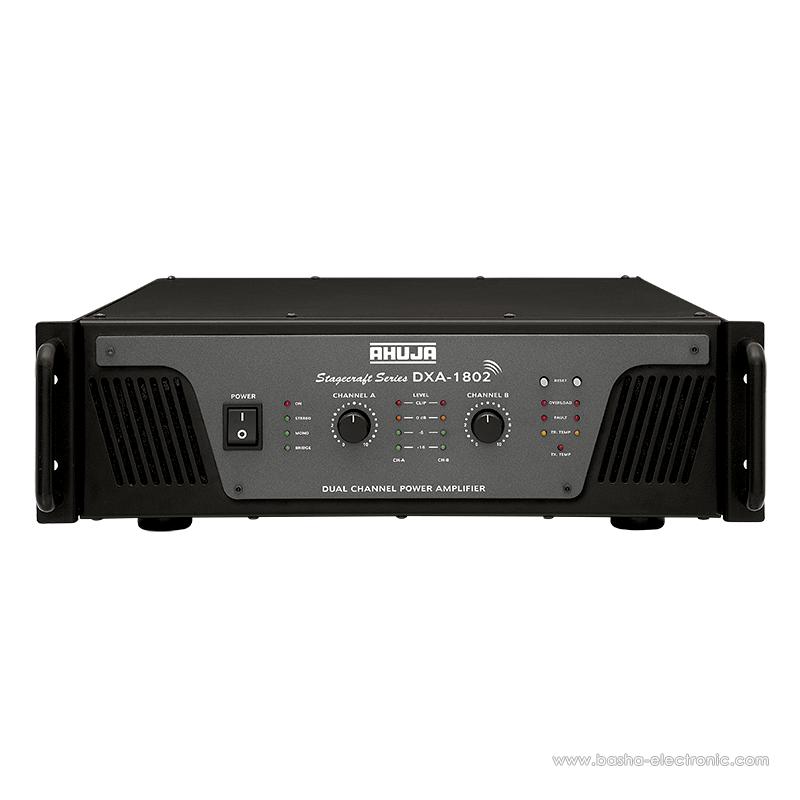

DXA-1802

900+900 WATTS

Dual Channel PA Power Amplifier

  • Dual channel direct coupled amplifier.
  • 1800 Watts rated output.
  • Rugged & reliable. Designed to work continuously under stringent operating conditions.
  • High fidelity sound. Ideal for high-end music programmes.
The Manufacture Company : AHUJA
Country of Origin : INDIA



  • Specifications
  • Downloads

Continuous Rated Power

.

Stereo/Mono

8Ω 370W + 370W RMS, 4Ω 650W + 650W RMS, 2Ω 900W + 900W RMS

Bridged Output

8Ω 1300W RMS, 4Ω 1800W RMS

Single Channel Driven Output

8Ω  385W RMS, 4Ω 720W RMS, 2Ω 1100W RMS

THD + N

0.5%

Frequency Response (-1dB)

20-20,000Hz

Power Bandwidth (0.5% THD)

20-20,000Hz

Input Sensitivity

0dBm (775mV)

Input Impedance

10k Unbalanced , 20k Balanced

S/N Ratio

95dB

Channel Separation

65dB at 1kHz

Damping Factor

400 : 1 (8Ω)

Slew Rate

35V/µs

Protections

Temperature, DC, RFI, Short Circuit, Overload, AC over voltage, Built-in limiter

Input Connectors

2 × XLR, Stereo Phone Jack 6.3mm

Output Connectors

Speakon 4-Way, Heavy Duty Screw Terminals each channel

Cooling

Variable Speed DC Fan with Temperature Sensing

Front Panel Controls

2× 21 Step Level Attenuators

Indicators

ON, Mode (Stereo, Mono, Bridge) Signal levels, Clip, Temperatures, Fault, Overload (Ch. A & B)

Power Consumption

2700VA @ 240V / 50Hz

Dimensions

W482 × H165 × D500mm

Weight

26.0kg



Operation Manual | 2018-07-19
