CMS-4300

CMS-4300

CONFERENCE SYSTEMS

Secretary Unit

The CMC-4100 Chairman and CMD-4200 Delegate Units have built-in loudspeakers and high quality sensitive electret condenser transducer mounted on 16" flexible goosenecks. The microphones of the units are equipped with a Ring LED indicator for easy visual identification of the unit in operation. Each unit has a headphone output with volume control.
The stylish, free-standing cast aluminium case has an angled facia incorporating the TALK switch which automatically mutes the internal speaker.
The Chairman Unit also has a non-lockable PRIORITY switch which interrupts the meeting with a chime tone and mutes the delegates' microphones. Both units have recessed volume controls for setting desired sound levels.

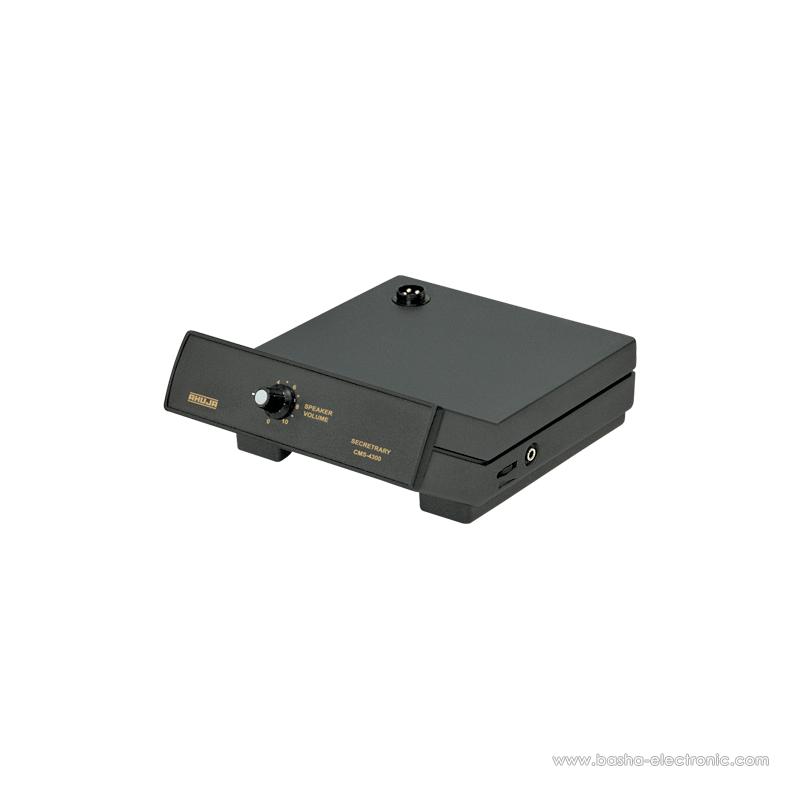

The matching CMS-4300 Secretary Unit has a built-in loudspeaker and a headphone output with volume control. The Secretary Unit enables proceedings to be recorded through a cassette recorder, for a stenographer present to take notes and to relay pre-recorded messages or music to delegates.

The Manufacture Company : AHUJA

Country of Origin : INDIA

Current Consumption	< 50mA Max.
Input	Line, Playback
Output	Line, Record, Headphone with Volume Control
Speaker	Max Input 300mW Impedance 16Ω
Controls	Monitor Speaker Volume Control, Headphone Volume Control
Dimensions	W145×H75×D180 mm
Weight	1.15kg (w/o cable)
Accessories	4 Pin Plug for REC/PB, 2.5m Interconnecting Cable
