APA-480

POWER AMPLIFIERS

INSTALLATION PA POWER AMPLIFIERS

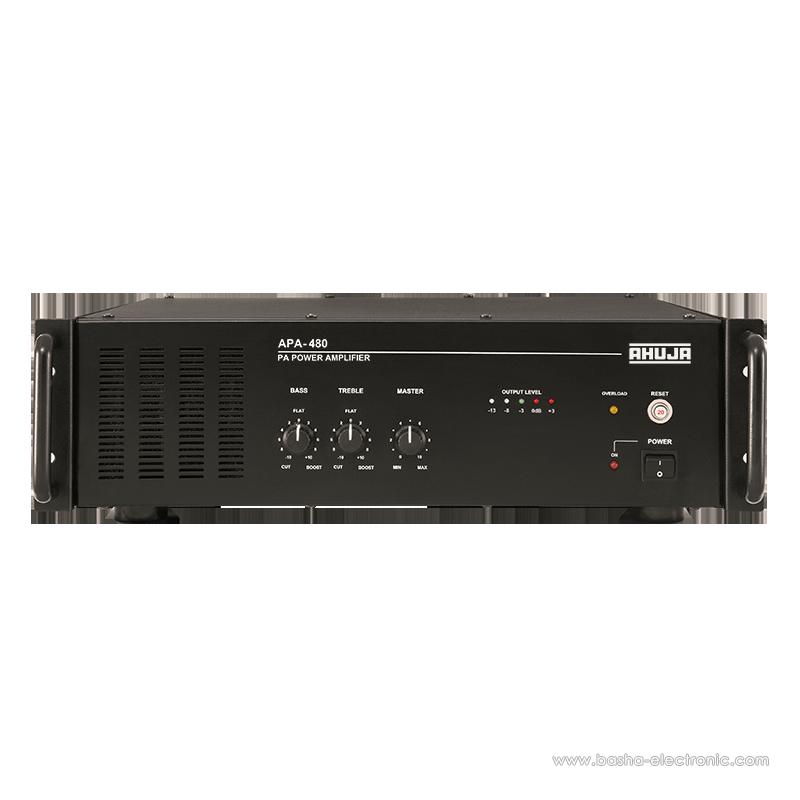

APA-480

600 WATTS

Installation PA Power Amplifier

  • 1x Line 200mV unbalanced input and 2xLine 1V balanced inputs through XLR connector, one 1V input having priority over all other inputs.
  • 100V input is provided for connecting another amplifier’s output in long line applications.
  • Ground lift switch provided at rear panel which helps reducing the hum that occures due to multiple ground loops in the installations.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Loop through output for connecting another booster amplifier.
  • 19” Rack mountable chassis.
  • Instant transfer to DC power (Car Battery) if AC power fails.
The Manufacture Company : AHUJA
Country of Origin : INDIA



  • Specifications
  • Downloads

Power Output

750W Max., 600W RMS at 10% THD, 550W RMS at 5% THD, 500W RMS at 2% THD, 480W RMS at 1% THD

Output Regulation

≤ 2 dB, no load to full load at 1kHz

Input Channels

1 × 200mV/470kΩ (unbal.), 2 × 1V/50kΩ (bal.), 1 × 100V Input/50kΩ

Frequency Response

50-15,000Hz ±3dB

Signal to Noise Ratio

60dB

Tone Controls

Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz

Outputs

Loop through 1 × 200mV/600W, 2 ×1V/1kW

Speaker Outputs

4Ω, 8Ω, 70V & 100V

Power Supply

AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)

Power Consumption

AC: 1200VA DC: 15A

Dimensions

W485 × H142 × D510 mm

Weight

32.20kg



Product Literature | 2018-07-19
