L12-MB200

SPEAKERS

PROFESSIONAL PA SPEAKERS

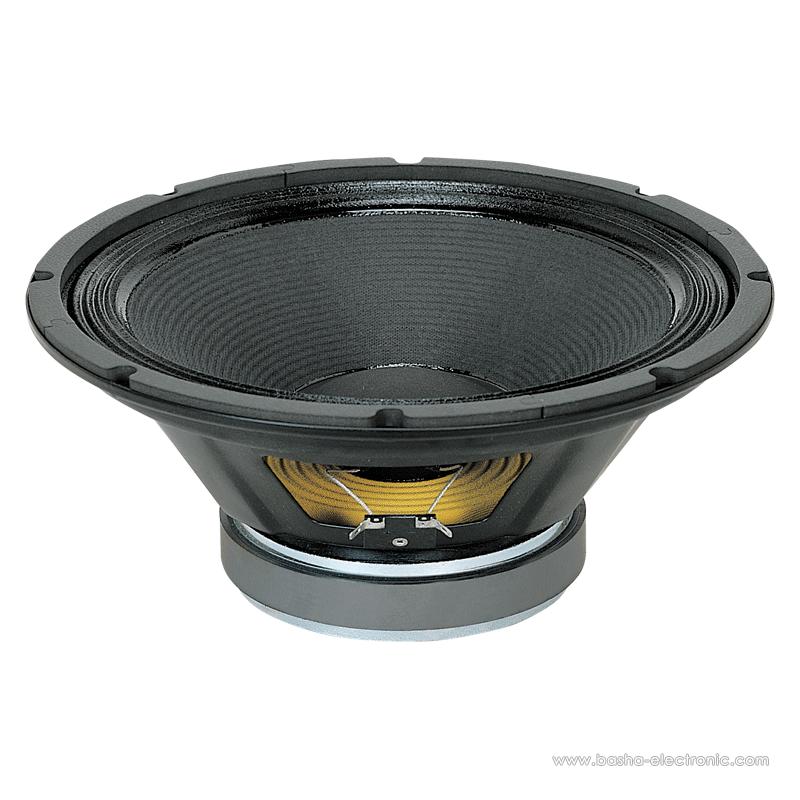

L12-MB200

200 WATTS

Professional PA Speaker

  • Specially designed for use in medium power compact 2-Way speaker systems. Suitable for bass-midrange and monitoring applications.
  • Robust steel frame and plasticized cloth edge composite cone.
  • KAPTON former 2.0” copper voice coil for withstanding high temp.
The Manufacture Company : AHUJA
Country of Origin : INDIA



  • Specifications
  • Downloads

Power Rating

200W RMS

Nominal Diameter

305mm (12”)

Nominal Impedance

8Ω

Sensitivity (1W/1m )

97dB

Magnet Weight

1.16 Kg

Resonant Frequencey (Fs)

45Hz

DC Resistance (Re)

7Ω

Electromagnetic Q (Qes)

0.46

Mechanical Q (Qms)

4.67

Total Q (Qts)

0.42

Compliance Equivalent Volume (VAS)

135Litr

Surface Area of Cone (Sd)

510cm2

Reference Efficiency (ηo)

1.35%

Voice Coil

2.0”

Overhang (Xmax)

2.5 mm

Moving Mass (Mms)

51.9gm

BL Product (BL)

13.42TM

Coil Inductance (Le)

0.89mH

Overall Diameter

313 mm

Depth

127 mm

Baffle Hole Diameter

285 mm

Bolt Mount Diameter (PCD)

295 mm (8 Bolts)

Weight

4.16kg



Product Literature | 2018-07-20
