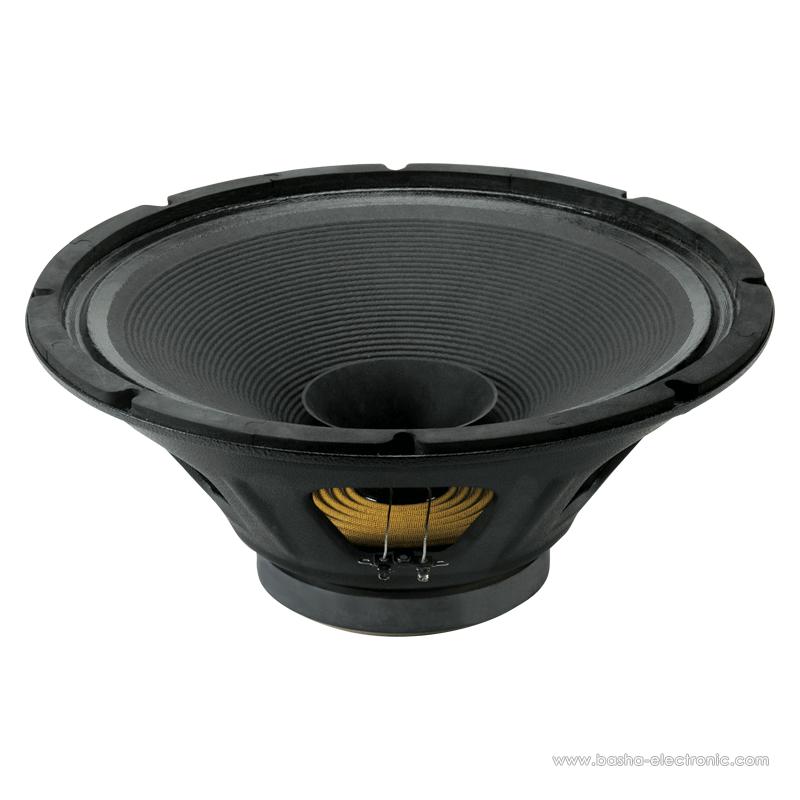

200 WATTS
Professional PA Speaker
|
Power Rating |
200W RMS |
|
Nominal Diameter |
380mm (15”) |
|
Nominal Impedance |
8Ω/16Ω |
|
Sensitivity (1W/1m ) |
98 dB |
|
Magnet Weight |
1.54kg |
|
Resonant FrequenceY (Fs) |
75Hz |
|
DC resistance (Re) |
6.5Ω/11.0Ω |
|
Electromagnetic Q (Qes) |
0.91 |
|
Mechanical Q (Qms) |
5.07 |
|
Total Q (Qts) |
0.77 |
|
Compliance Equivalent Volume (VAS) |
75.11Litr |
|
Surface Area of Cone (Sd) |
830cm2 |
|
Reference Efficiency (ηo) |
3.18% |
|
Voice Coil Diameter |
2.0” |
|
Overhang (Xmax) |
4.0 mm |
|
Moving Mass (Mms) |
60.62gm |
|
BL Product (BL) |
14.23TM |
|
Coil Inductance (Le) |
0.78mH |
|
Overall Diameter |
385 mm |
|
Depth |
165 mm |
|
Baffle Hole Diameter |
355 mm |
|
Bolt Mount Diameter (PCD) |
373 mm (8 Bolts) |
|
Weight |
4.90kg |
