100 WATTS

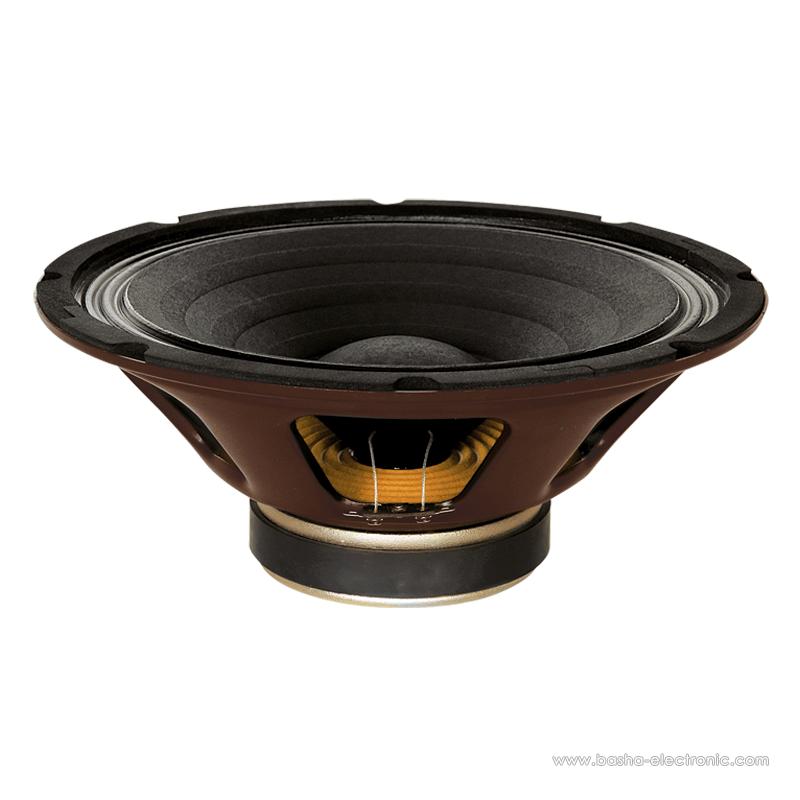

Professional PA Speaker
|
Power Rating |
100W RMS |
|
Nominal Diameter |
305 mm (12”) |
|
Nominal Impedance |
8Ω |
|
Sensitivity (1W/1m ) |
97dB |
|
Magnet Weight |
1.1kg |
|
Resonant FrequenceY (Fs) |
70Hz |
|
DC resistance (Re) |
6.0Ω |
|
Electromagnetic Q (Qes) |
0.79 |
|
Mechanical Q (Qms) |
5.5 |
|
Total Q (Qts) |
0.69 |
|
Compliance Equivalent Volume (VAS) |
74.23 Litr |
|
Surface Area of Cone (Sd) |
510cm2 |
|
Reference Efficiency (ηo) |
3.09% |
|
Voice Coil |
1.5” |
|
Overhang (Xmax) |
2.0mm |
|
Moving Mass (Mms) |
25.5gm |
|
BL Product (BL) |
9.2TM |
|
Overall Diameter |
311 mm |
|
Depth |
130 mm |
|
Baffle Hole Diameter |
285 mm |
|
Bolt Mount Diameter (PCD) |
292 mm (8 Bolts) |
|
Weight |
3.20kg |
