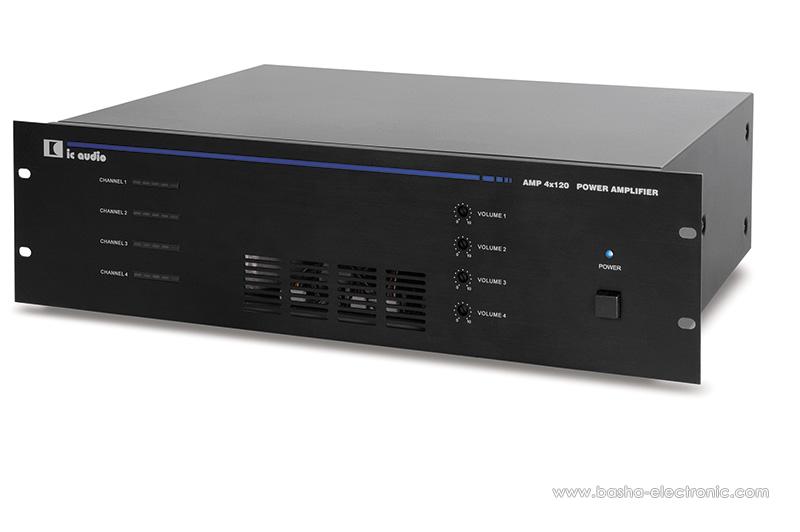

Analog 4-channel power amplifier for Public Address installations.
The 4-channel power amplifier AMP 4 x 120 is specially designed for the application in public buildings, schools or coliseums.
The amplifier with 4 x 120 Watt is protected against overload and short circuit. A fan provides for thermal stability. The output level is shown by a LEDVU meter. With the speaker outputs of 70 Volt, 100 Volt and 8 Ohm the AMP 4 x 120 can be recommended for all kinds of installation condition.
1x XLR, 1 x 1⁄4 inch jack and 2 x cinch connectors for incoming signals are available for each channel. The 19-inch housing (3U) allows for space-saving mounting in racks.
| Artikel Nr. | 80000050 |
| Produkt | AMP 4x120 |
| Power (Max/Rated) | 4 x 120 W |
| Inputs | Line input: 1V, 47Kohm symmetrisch, unsymmetrisch, balanced, unbalanced |
| Frequency response |
50Hz 50~20KHz ± 3 dB |
| Outputs | 8ohm, 100V (70V/100V selectable) |
| THD | Less than 1% at 1 KHz, rated power |
| Mains/Battery Voltage |
AC 230V/240V 50/60Hz DC 24V (MAX 10% deviation) |
| Power consumption | 1100 W |
| Colour | black |
| Dimensions | 133x483x380 mm |
| Weight (net) | 25,70 kg |
| Packing Unit | 1 |
