DA-P 20-130/T
  • .very good speech intelligibility
  • .high impact ABS plastic
  • .quick mounting

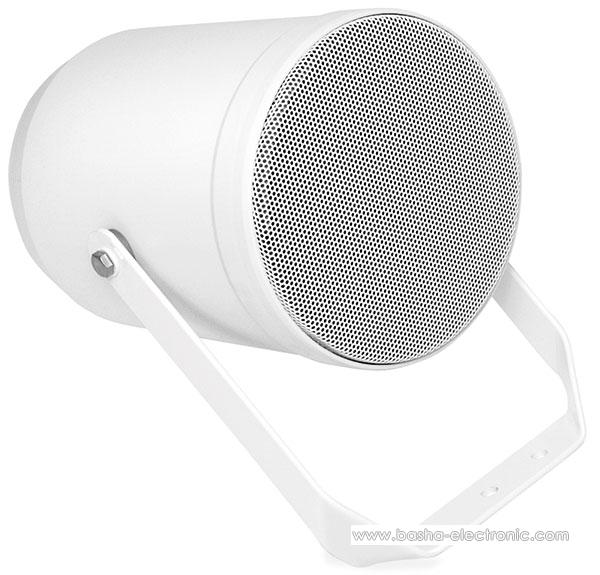

  • The 20W powered speaker is equipped with a 130mm full-range loudspeaker chassis and a 100V line transformer with 4 power adjustments. A robust ABS-plastic housing in white, and a solid mounting bracket ensures the permanent installation of this speaker.

    The speaker is secured with the high protection class IP 56 against the risks of environmental influences.

    Perfectly suitable for the installation in corridors and hallways.

    Optionally available is a mast bracket (MB) for about 200mm mast diameter.

The Manufacture Company : IC AUDIO
Country of Origin : GERMANY

  • Specifications
  • Downloads
Artikel Nr. 61520130
Produkt DA-P 20-130/T
Power 20/10/5/2,5 W
Information Frequency Range 150 - 20.000 Hz
Information Frequency Response 120 - 21.000 Hz
Information SPL 1W/1m, peak 99,5 dB
Information SPL Pmax/1m, peak 112,5 dB
Sensitivity 1W/1m 91,5 dB
Dispersion (-10dB) 360° (h) / 360° (v)
Temperature range -20 / +90 °C
Dimensions 140x195 mm
IP Rating IP56
Weight (net) 1,25 kg
Colour white
Connector 5-pin cable
Mounting Mounting bracket
Packing Unit 8
Accessories MB 200
Impedance 1
