DL-P 06-165/T
22,000 SP

DL-P 06-165/T

  • quick mounting
  • UV-resistant
  • high impact ABS plastic
DL-P 06-165/T

DL-P 06-165/T

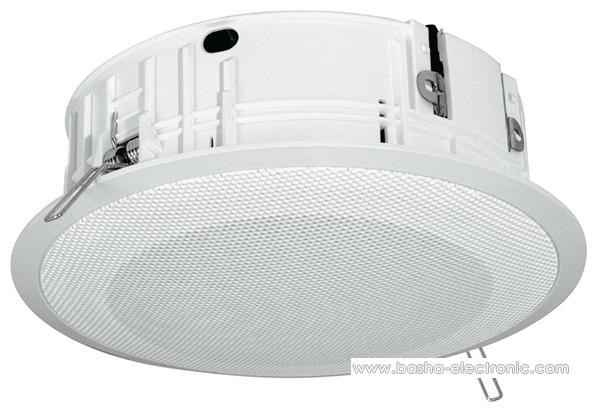

Modern ceiling speaker for public address applications, UV, suitable for voice announcements and background music with excellent sound quality in buildings.

The 6W powered speaker is equipped with a 165mm full-range loudspeaker and a 100V transformer with 3 power adjustments. The impact-resistant ABS housing (UL 94-HB) in RAL 9010 guarantees long-term stability. Quick and easy mounting with spring clamps and short tension distance.

The speaker is protected by the high protection class IP 44 against the risks of environmental influences.

The speaker is connected by a 2-pin push-clamp.

This speaker is suitable for a ceiling strength of about 2 – 47 mm. Our specification is primarily related to solid ceilings, for ceilings with soft materials a higher ceiling thicknesses could be necessary. In addition, stronger cables and other fittings may also result in changes of the appropriate setup. With regard to the variety of materials and manufacturers, we recommend to build in a sample of the speaker to match the requirements accurately.

The Manufacture Company : IC AUDIO
Country of Origin : GERMANY



  • Specifications
  • Downloads
Artikel Nr. 10222025
Produkt DL-P 06-165/T
Power 6/3/1,5 W
Information Frequency Range 84 - 22.500 Hz
Information Frequency Response 70 - 23.500 Hz
Information SPL 1W/1m, peak 100,2 dB
Information SPL Pmax/1m, peak 108 dB
Sensitivity 1W/1m 98,6 dB
Dispersion (-10dB) 180° (h) / 180° (v)
Temperature range -20 / +80 °C
Dimensions 210x73 mm
IP Rating IP44
Weight (net) 0,80 kg
Colour RAL 9010
Connector 2-pin push clamp
Mounting spring clamp
Packing Unit 12
Ceiling Cut-out 192 mm
