DL 06-130/T

DL 06-130/T

  • quick mounting
  • shock-resistant housing
  • high efficiency
DL 06-130/T

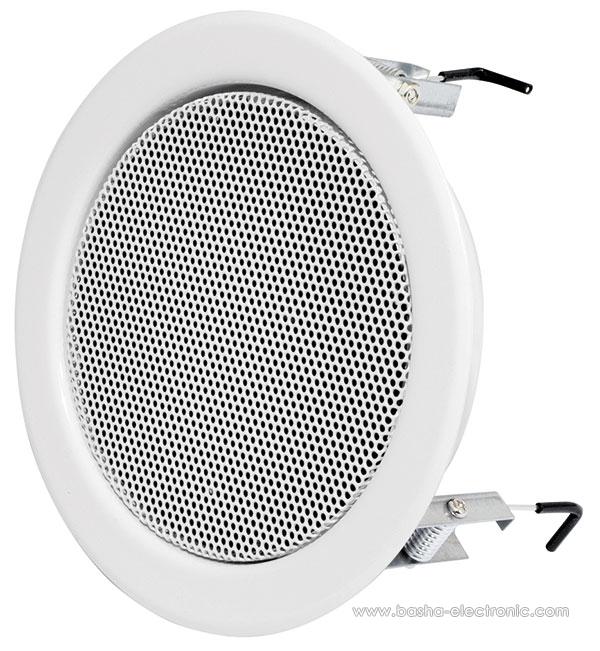

Compact ceiling speaker for public address applications, UV- and impact-resistant, suitable for voice announcements and background music with excellent sound quality in buildings.

The 6W powered speaker is equipped with a 130mm full-range loudspeaker and a 100V transformer with 3 power adjustments. The powder coated metal similar in RAL 9010 guarantees long-term stability. Quick and easy mounting with spring clamps and short tension distance. The speaker is connected by a 2-pin push-clamp.

Special paint of the speaker in 4-digit RAL- or NCS- colour available at extra cost.

This speaker is suitable for a ceiling strength of about 2 – 45 mm. Our specification is primarily related to solid ceilings, for ceilings with soft materials a higher ceiling thicknesses could be necessary. In addition, stronger cables and other fittings may also result in changes of the appropriate setup. With regard to the variety of materials and manufacturers, we recommend to build in a sample of the speaker to match the requirements accurately.

The Manufacture Company : IC AUDIO
Country of Origin : GERMANY

  • Specifications
  • Downloads
Artikel Nr. 50617800
Produkt DL 06-130/T
Power 6/3/1,5 W
Information Frequency Range 90 - 15.000 Hz
Information Frequency Response 70 - 17.900 Hz
Information SPL 1W/1m, peak 93,8 dB
Information SPL Pmax/1m, peak 101,6 dB
Sensitivity 1W/1m 87,3 dB
Dispersion (-10dB) 178° (h) / 178° (v)
Temperature range -20 / +80 °C
Dimensions 180x98mm
Weight (net) 0,86 kg
Colour RAL 9010
Connector 2-pin push clamp
Mounting Quick fit mounting
Packing Unit 12
Accessories F 130
Ceiling Cut-out 162 mm
