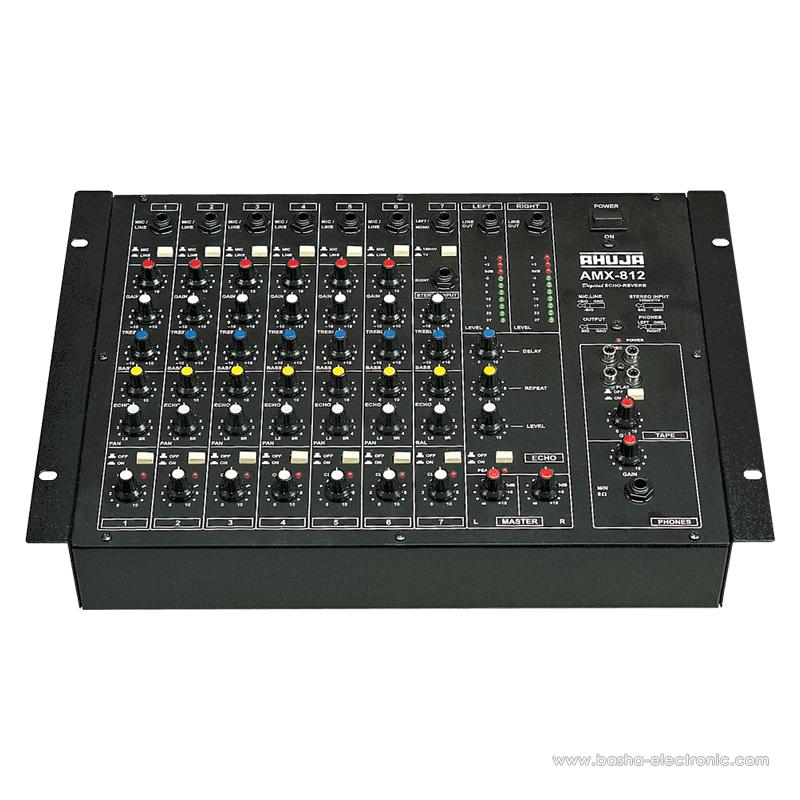

AMX-812

MIXERS

PA AUDIO MIXING CONSOLES - STEREO

AMX-812

8 Channel

AC & 24V DC Operation

  • Input Channels: Each Channel has a 1/4” phone jack selectable for either Mic or Line input & accepts both balanced & unbalanced signals.
  • Stereo Channel: Independent Stereo input through separate 1/4” unbalanced phone jacks for Left & Right channels.
  • Each channel has Gain, Bass, Treble, PAN, ECHO and Level controls with Clip LED indicator.
  • Echo section provided with Delay, Repeat & Level controls. Tape section for Record & Playback facility.
The Manufacture Company : AHUJA
Country of Origin : INDIA



  • Specifications
  • Downloads

Power Requirements

AC: 220-240V 50/60Hz, DC: 24v (2×12V Car Battery)

MIC Input (Impedance/Gain)

2kΩ/62dB

LINE Input (Impedance/Gain)

20kΩ Balanced/42dB, 10kΩ Unbalanced/42dB

Distortion

< 0.08%

Frequency Response

30Hz - 20kHz (+0,-1dB)

Tone Controls

Bass : ±12dB at 100Hz, Treble : ± 12dB at 10kHz

OUTPUT

.

Line Output HI

0dBm/+17dBm (775mV/5.5V)

ECHO/Reverb System

Digital Signal Processing

Signal to Noise Ratio

>70dB (0dBm, 0.775V)

Dimensions

W423 × H93 × D302 mm

Weight

5.0kg



Operation Manual | 2018-07-18
