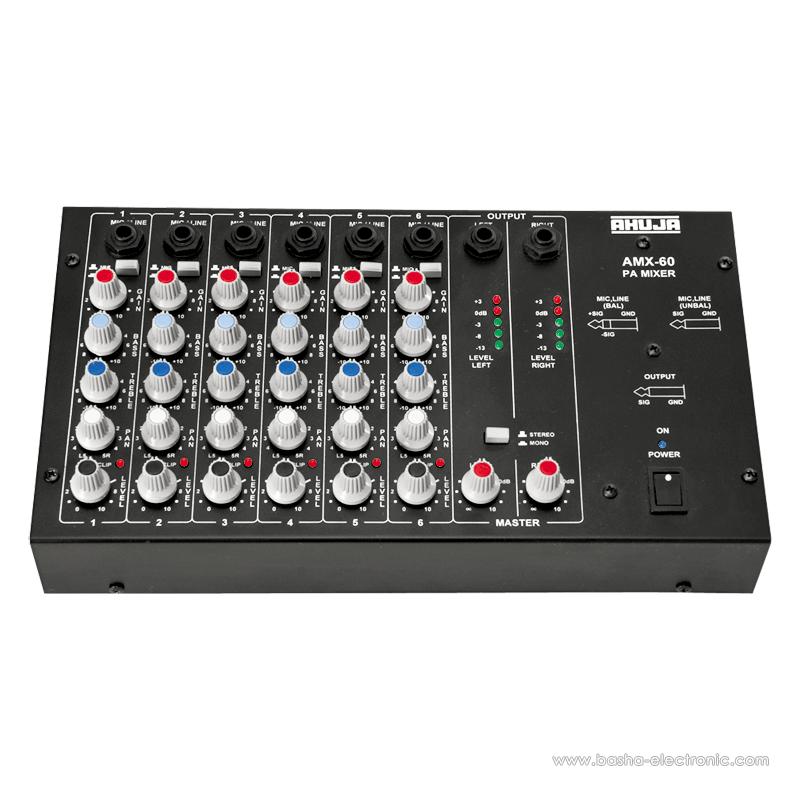

AMX-60

MIXERS

PA AUDIO MIXING CONSOLES - STEREO

AMX-60

6 Channel

AC Operation

  • General Purpose 6 Channel PA Mixer Preamplifier
  • Input Channels : Each Channel has a 1/4” balanced phone jack for Mic/Line & accepts both balanced & unbalanced signals.
  • MONO/STEREO Output : Mono output is available from either Left or Right output jacks when the switch is in ‘Mono’ position.
  • Each channel has Gain, Bass, Treble, PAN and Level controls with Clip LED indicator.
  • Individual five segment LED array for left and right outputs.
The Manufacture Company : AHUJA
Country of Origin : INDIA



  • Specifications
  • Downloads

Power Requirements

AC: 220-240v 50/60Hz

MIC Input (Impedance/Gain)

2kΩ Balanced/62dB, 1kΩ Unbalanced/62dB

LINE Input (Impedance/Gain)

20kΩ Balanced/42dB, 10kΩ Unbalanced/42dB

Distortion

< 0.1%

Frequency Response

20Hz-18 kHz (-1dB)

Tone Controls

Bass: ± 12dB at 100Hz, Treble: ± 12dB at 10kHz

Line Output (RATED/MAX)

0dBm/+18dBm (775mV/6.5V)

Signal to Noise Ratio

> 68dB

Dimensions

W295 X H70 X D180mm

Weight

2.4Kg



Operation Manual | 2018-07-18
Download
