SPA-5000®EM

POWER AMPLIFIERS

HIGH WATTAGE PA POWER AMPLIFIERS

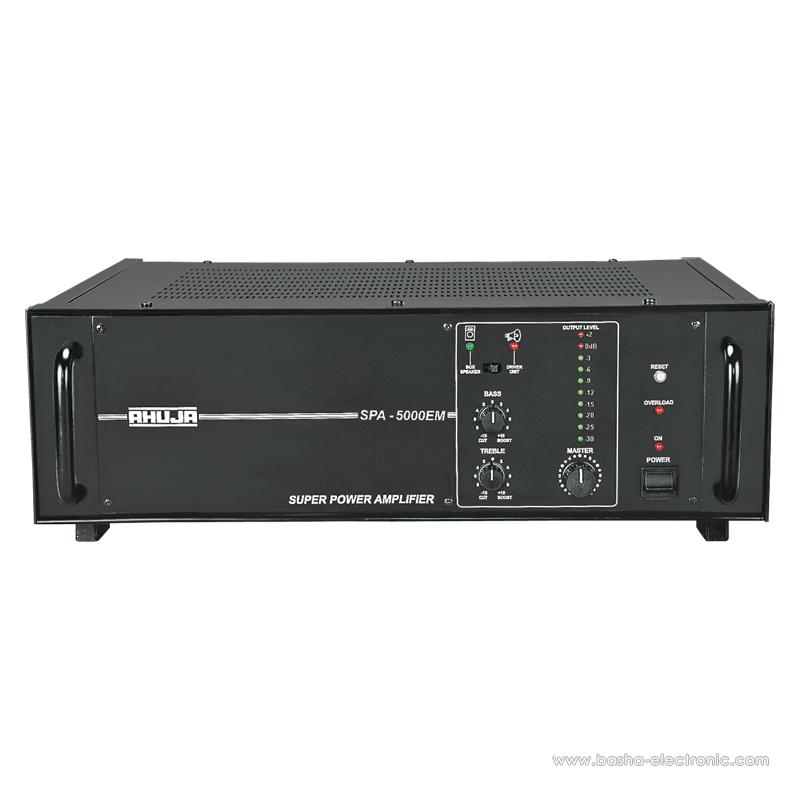

SPA-5000®EM

500 WATTS

High Wattage PA Power Amplifier

  • Line Input 200mV/1V switchable for connecting a mixer or another amplifier.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
  • Ideal for large installations where a high power output is required. A combination of a SSA-5000EM and one SPA-5000EM can deliver 1000W power output.
The Manufacture Company : AHUJA
Country of Origin : INDIA



  • Specifications
  • Downloads

Power Output

750W Max., 500W RMS at 10% THD, 450W RMS at 5% THD, 415W RMS at 2% THD

Output Regulation

≤ 2 dB, no load to full load at 1kHz

Input Channels

1 × Line 200mV/100kΩ, 1 × Line 1V/50kΩ

Frequency Response

50-15,000Hz ±3dB

Signal to Noise Ratio

60dB

Tone Controls

Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz

Speaker Outputs

4Ω, 8Ω, 70V & 100V

Power Supply

AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery)

Power Consumption

AC: 1000VA DC: 8A

Dimensions

W510 × H172 × D385 mm

Weight

25.7kg



Operation Manual | 2018-07-19
